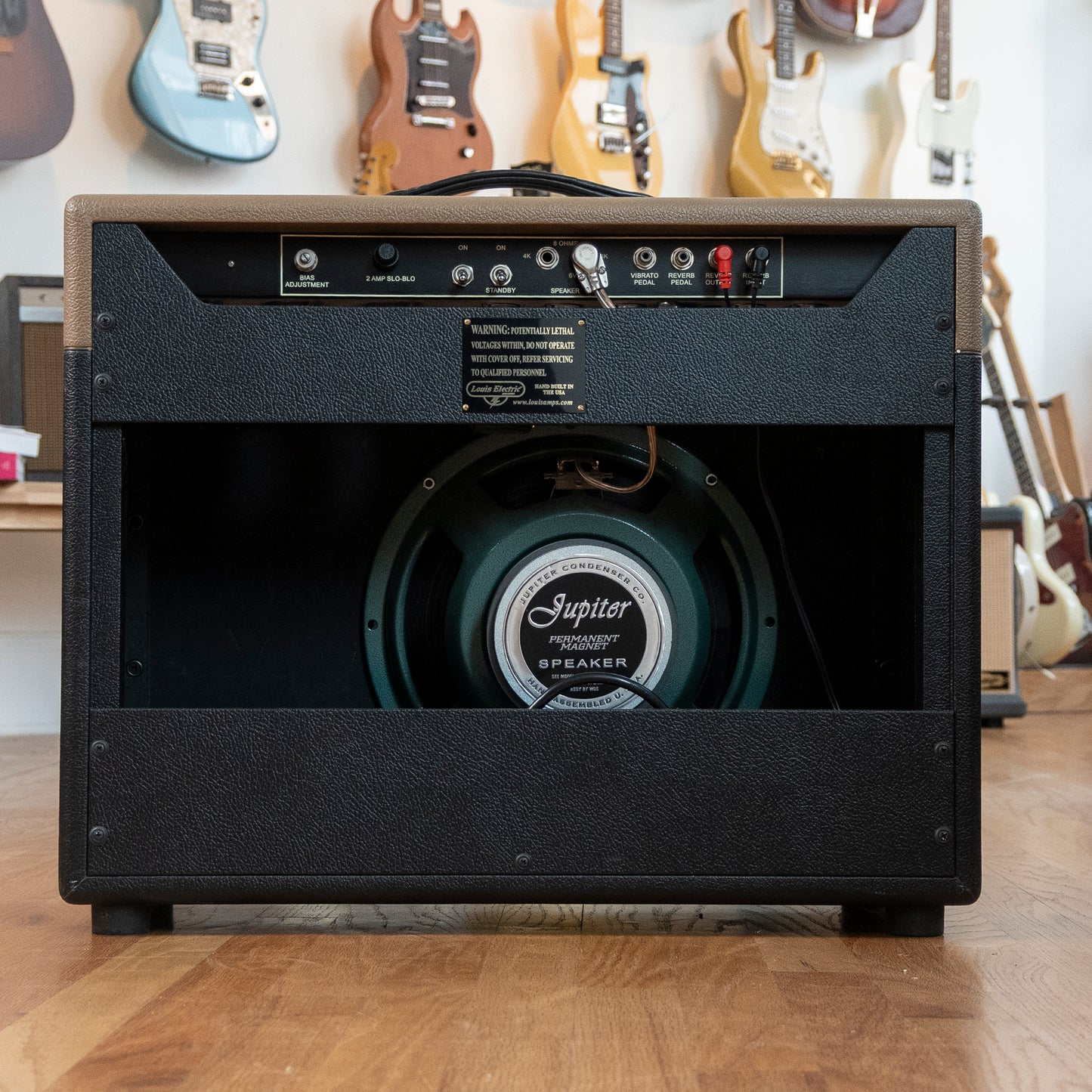

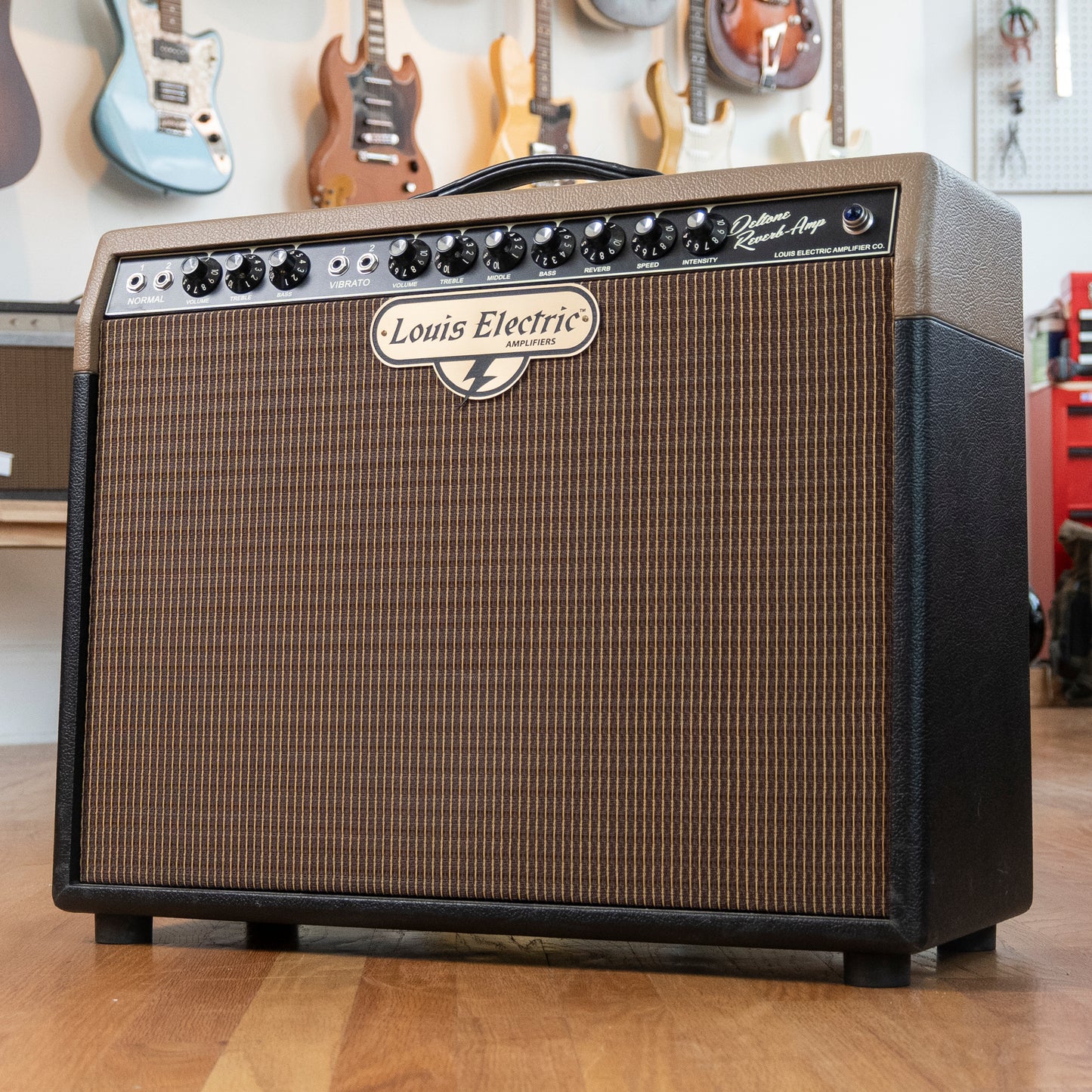

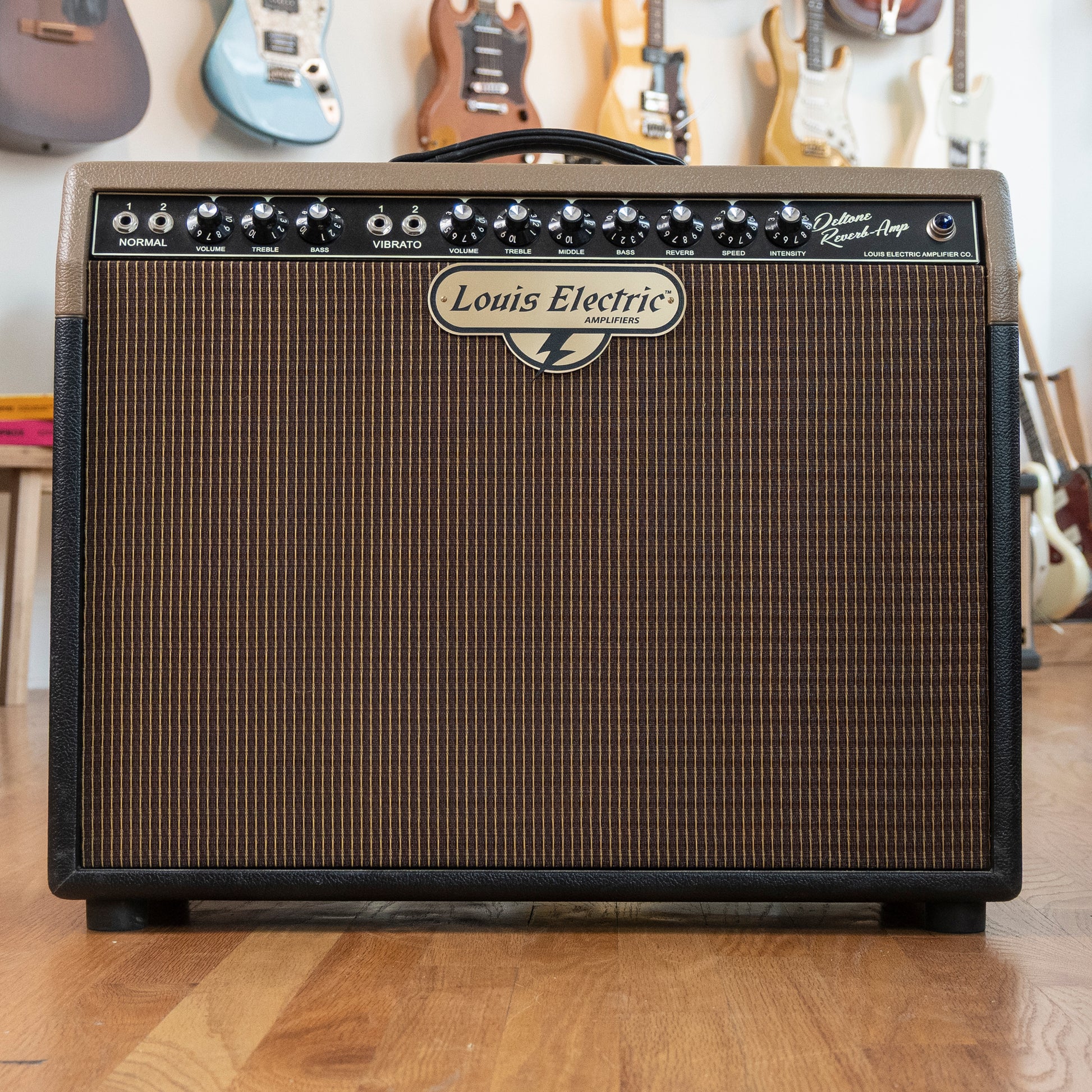

Louis Electric Deltone USED

This Louis Electric Deltone is in excellent condition, and sounds wonderful. Available for local pickup only!

Core Specifications

• Power Output: With 6V6 tubes: 20 watts | With 6L6 tubes: 35 watts

• Tube Configuration: Preamp: 3 × 12AX7, 1 × 12AT7, 1 × 12AU7 | Power Amp: 2 × 6V6 or 2 × 6L6 | Rectifier: 1 × 5AR4

• Circuit Type: AB1, fixed bias

Channels and Controls

• Channels: 2 (Normal and Vibrato)

• Normal Channel: Volume, Treble, Bass

• Vibrato Channel: Volume, Treble, Middle, Bass, Reverb, Speed, Intensity

• Inputs: 2 per channel (4 total)

Speaker and Cabinet

• Speaker: 1 × 12" (Jupiter 12LC or Celestion G12H30)

• Speaker Impedance: 8 ohms

• Cabinet: Hand-built with eyelet terminal board, custom transformers, and premium components

• Dimensions: 18.75" H × 24" W × 10" D
